LC7113 PLL Frequency Synthesizer

Overview

This 27 MHz band, PLL frequency synthesizer LSI chip is designed specifically for CB transceivers. The integrated circuit`s incorporates PLL circuitry and a controller for CB applications on a single CMOS chip.
This PLL-circuit use a 6 bit BCD binary programmable divide-by-N counter. N-codes are 64+N or 128+N.

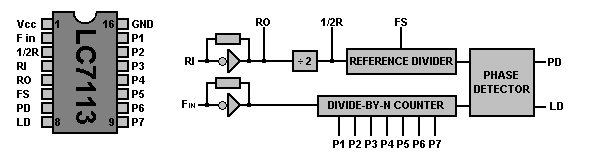

Pin	Name	Description
1	Vcc	Positive Supply Voltage
2	F in	VCO Frequence Input
3	1/2R	Reference oscillator output divided by 2
4	RI	X-tal Input
5	RO	X-tal Output
6	FS	Function Select - HIGH=Divided by 1024 LOW=Divided by 1152
7	PD	Phase Detector Output
8	LD	Loock Detector - Locked=HIGH Unlocked=LOW
9	P7	Programmable input 7 HIGH=N-codes is 64+N LOW=N-codes is 128+N
10	P6	Programmable input 6
11	P5	Programmable input 5
12	P4	Programmable input 4
13	P3	Programmable input 3
14	P2	Programmable input 2
15	P1	Programmable input 1
16	GND	Ground
