MC1496P Balanced Modulator / Demodulator
Similar to LM1396 LM1496 LM1596 uA796 N5596 NJM1496 and SN76514
The MC1496P are doubled balanced modulator-de-
modulators which produce an output voltage proportional to
the product of an input (signal) voltage and a switching (car-
rier) signal. Typical applications include suppressed carrier
modulation, amplitude modulation, synchronous detection,
FM or PM detection, broadband frequency doubling and
chopping.
- Excellent carrier suppression
65 dB typical at 0.5 MHz
50 dB typical at 10 MHz
- Adjustable gain and signal handling
- Fully balanced inputs and outputs
- Low offset and drift
- Wide frequency response up to 100 MHz

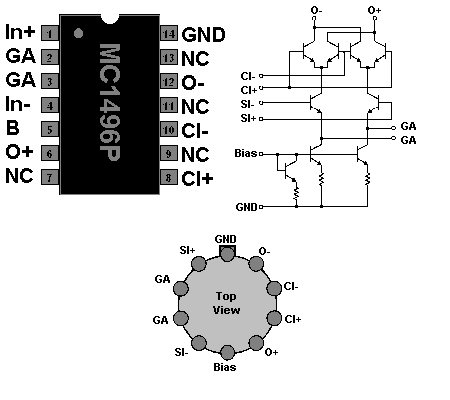

| Pin | Name | Description |
|---|
| 1 | 1 | SI+ | Signal input + |
| 2 | 2 | GA | Gain Adjust |
| 3 | 3 | GA | Gain Adjust |
| 4 | 4 | SI- | Signal input - |
| 5 | 5 | B | Bias |
| 6 | 6 | O+ | Output + |
| 7 | | NC | No Connection |
| 8 | 7 | CI+ | Carrier In + |
| 9 | | NC | No Connection |
| 10 | 8 | CI- | Carrier In - |
| 11 | | NC | No Connection |
| 12 | 9 | O- | Output - |
| 13 | | NC | No Connection |
| 14 | 10 | Vss | Ground |
